Key to Safe SMT Assembly Line Operations

The key to safe SMT (Surface Mount Technology) assembly line operations lies in a combination of rigorous training, adherence to safety protocols, and the use of advanced equipment. Operators must be well-versed in handling sensitive components and machinery, while maintaining a clean and organized workspace to prevent accidents. Regular equipment maintenance and inspections are essential to ensure optimal performance and minimize risks. Additionally, implementing proper electrostatic discharge (ESD) protection measures and wearing appropriate personal protective equipment (PPE) are critical to safeguarding both personnel and products. By fostering a culture of safety and continuous improvement, manufacturers can achieve efficient and hazard-free SMT assembly line operations.

SMT Assembly Line Manufacturing Process

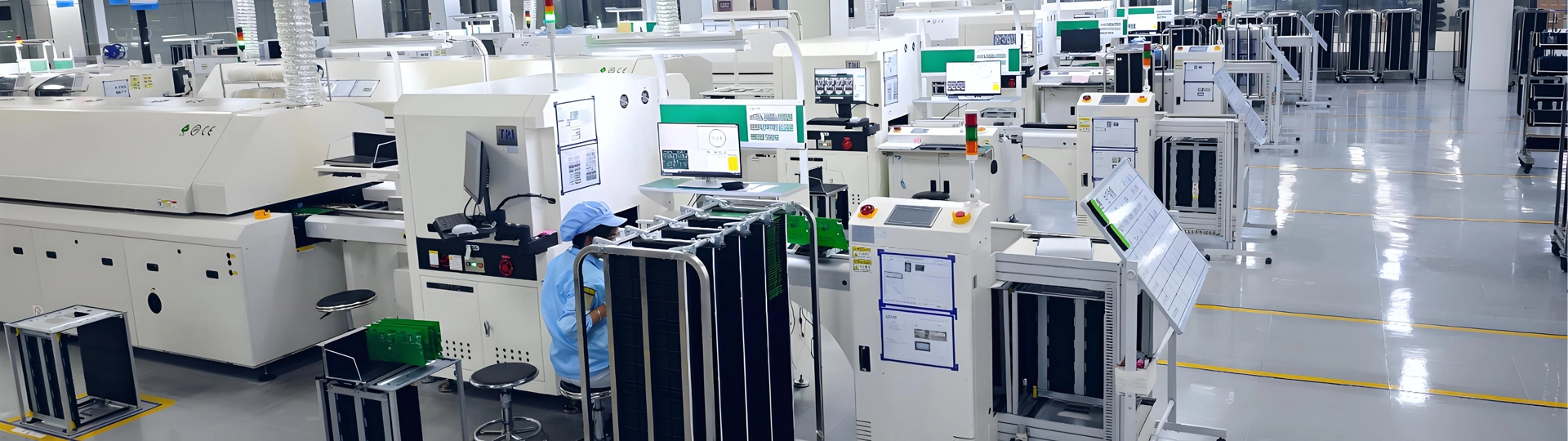

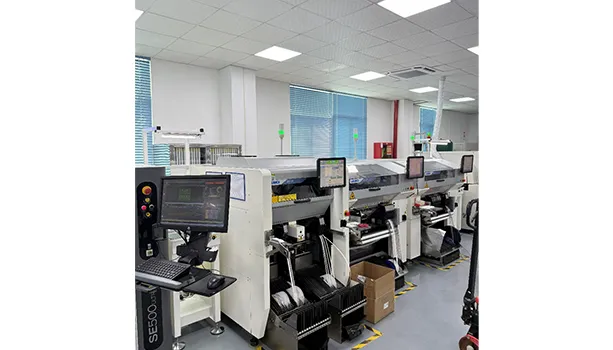

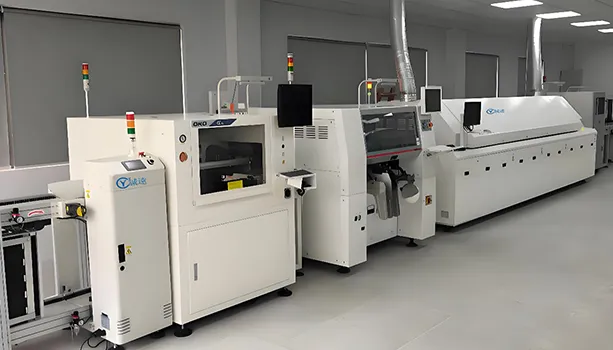

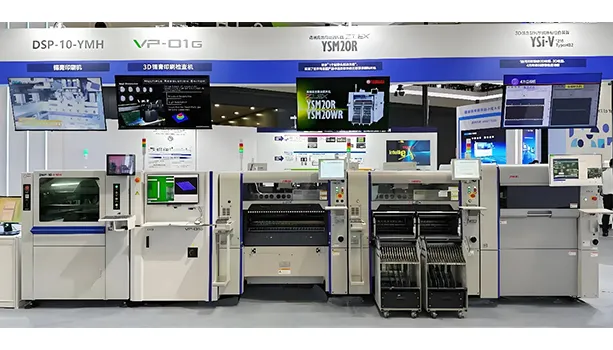

The SMT (Surface Mount Technology) assembly line manufacturing process is a highly automated and efficient method for producing electronic circuit boards. It begins with the application of solder paste to the PCB (Printed Circuit Board) using a stencil printer. Next, components are precisely placed onto the board by pick-and-place machines, which use advanced vision systems to ensure accuracy. The PCB then moves through a reflow oven, where the solder paste is melted to create strong electrical and mechanical connections. After cooling, the boards undergo inspection, often using Automated Optical Inspection (AOI) or X-ray systems, to detect any defects. Finally, the assembled PCBs are tested for functionality before being packaged and shipped. This streamlined process enables high-speed, high-volume production with consistent quality.
