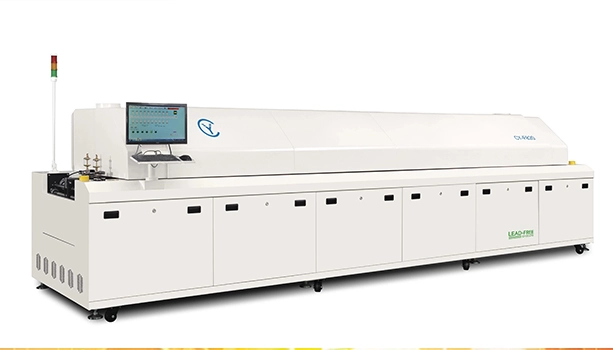

| Reflow soldering technology parameters | |||
| Series | F series Single rail | ||
| Model | CY-F820 | CY-F1020 | CY-F1220 |
| The heating part parameters | |||
| Number of heating zones | Up 8/Down 8 | Up 10/ Down 10 | Up 12/ Down 12 |
| Number of cooling zones | Top2/Down 2/Standard Top3/Down 3/Optional | ||
| Heating zone length | 2900 mm | 3600 mm | 4400mm |
| Transportation part parameters | |||
| PCB maximum width | Rail type 50-450mm Mesh belt type 550mm | ||
| Transport direction | Standard L→R Optional（R→L） | ||
| Guide rail fixed way | Front（Optional：Backend） | ||
| Conveyor belt speed | Mesh belt 875±20mm Chain900±20mm | ||
| Transmission way | Chain drive + mesh drive | ||
| Conveyor belt speed | 300-2000mm/Min | ||
| Control part of the parameter | |||
| The power supply | 5-wire 3-phase 380V 50/60Hz | ||
| Starting power | 35Kw | 48Kw | 68Kw |
| Normal work consumed power | Approx.7.5Kw | Approx.8.5Kw | Approx.10Kw |
| Heating up time | About 15-20 Mins | ||
| The temperature control range | Room Temperature-300℃ | ||
| Temperature control mode | Fully computerized PID closed-loop control, SSR driver | ||
| The whole machine control mode | PLC/ Computer+ PLC | ||
| The temperature control precision | ±1℃ | ||
| The deviation of PCB temperature distribution | ±1-2℃ | ||
| Cooling way | Air machine: air-cooled | ||
| Abnormal alarm | Abnormal temperature (ultra-high or ultra-low after constant temperature) | ||
Windows 7 operating system, switching between Chinese and English interfaces, easy to operate
Equipped with fault diagnosis function, it can display various faults and automatically display and store them in the alarm list
The control program can automatically generate and backup various data reports for easy ISO 9000 management
CY series reflow soldering focuses on improving the environmental performance of equipment, including a new high-efficiency and energy-saving (air duct structure), greatly reducing energy consumption, and achieving less carbon emissions with lower energy consumption
The CY series not only meets the highest requirements for lead-free and soldering, but also ensures high-quality soldering results. Improved heat conduction technology avoids overheating problems of electronic components on PCB boards
