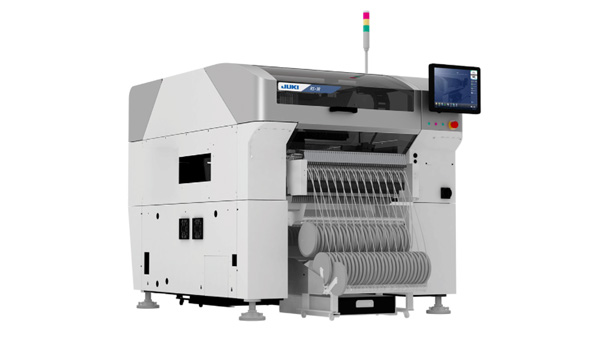

RS-1R JUKI Pick And Place Machine JUKI

Features of RS-1R

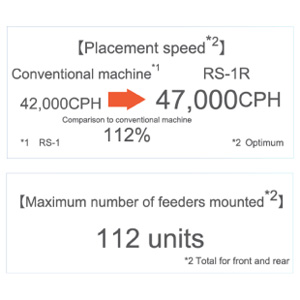

1. Class leading speed, up to 47,000 cph

Maximum speed of up to 47,000 cph*.

This is made possible by a revolutionary head design that reduces the travel time and distance for every placement.

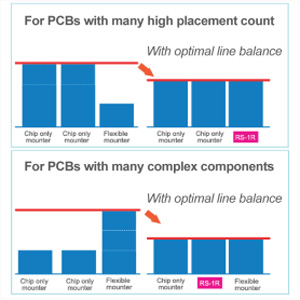

2. Optimum line balance and highest throughput

Changing the RS-1 functionality does not require head replacement.

The revolutionary design self-optimizes based on the production requirements. The RS-1R can reduce the workload on high speed. A line with two or more RS-1Rs can adjust to a wide variety of production requirements from high speed to high flexibility.

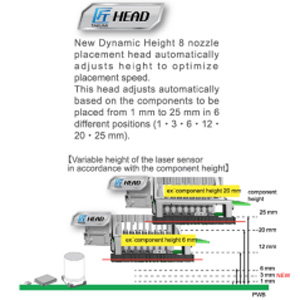

3. Self-Optimizing Smart Head

"Takumi head" that automatically optimizes it's height between 6 different positions based on component height. Tact time is optimized by keeping the head as close to the PCB as possible for the components placed.

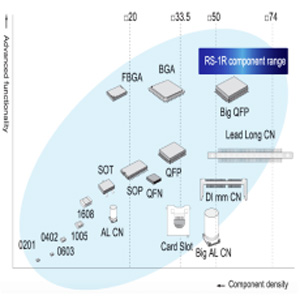

4. Wide component range from 0201 (metric) to large connectors and ICs

RS-1R supports components from 0201*1(metric) up to 74mm square or 50x150 retangular parts. Component height up to 25mm

5. Optimal for LED placement

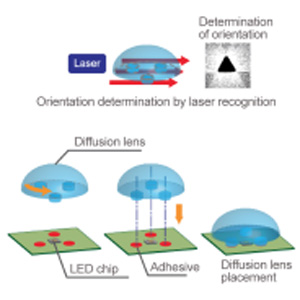

• High-precision placement of diffusion lenses. RS-1R can use either vision or laser centering for diffusing lenses, depending on the component requirements. A wide range of lens styles can be placed.Up to 650 x 370mm with single clamping. LED chip Conveyor direction 2nd clamp placement area

• Long PCB Support Up to 950 x 370mm with dual clamping, or up to 1200 x 370mm with optional conveyor extensions.

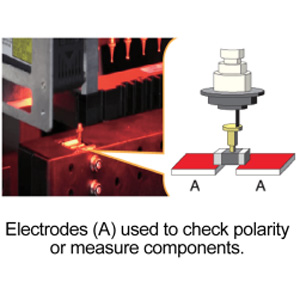

6. Incorrect component prevention componen verification system(CVS)

By measuring the resistance, capacitance or polarity before production starts, the machine can prevent incorrect components from being placed.
