Specifications | |
Model | UV-2000 |
External dimensions | L1800*H970*W1920(mm) |
Control system | Touch screen |
Transmission | Track + stainless steel chain |
PCB components height | Up 100mm. Down 100mm，Equipped with adjustable light blocking plate |
UV light box | Aluminum alloy lightbox, installed with insulated quartz glass, with the illuminated surface of the lightbox 100-150mm away from the conveying surface. Manually adjustable, position display shows height. |
Working height | 900±20mm |
PCB width | 100-450mmManually adjustable |
Transportation direction | L-R |
Conveyor speed | 0.5~3m/min/ Adjustable |
UV lamp power | 5KW*2(Total length 630, arc length 500, UV wavelength 365nm）Equipped with two levels of dimming：75%，100% |
Light intensity range | 100～220mw/cm² |
Transmission mode | Adjustable speed motor + long pin chain |
UV energy range | At a line speed of 1.5m/min, the energy can reach 1500MJ/cm2 |
Power supply | Three phase five wire，AC380V，50HZ。 |
Total power | About13.5KW |
| Specification | |

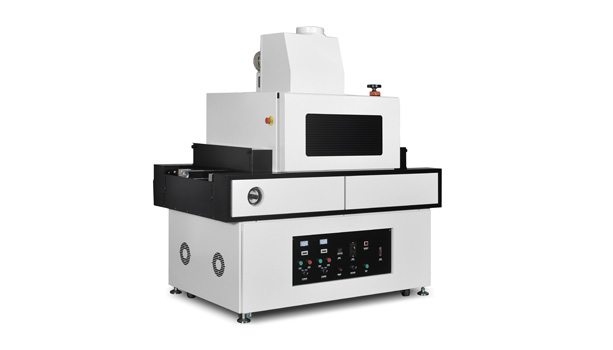

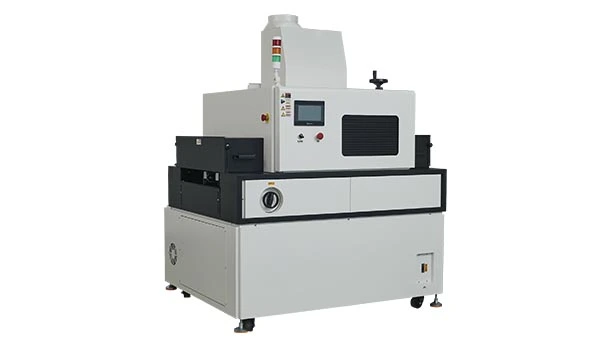

| Name | PCB UV curing oven |
| Model | UV-2000 |
| Brand | CY |
| Dimension | 1500×1000×1700mm |
| Transport | Stainless steel chain |
| Control System | PLC+touch screen |
| Conveyor Speed | 100~3000mm/min |
| Main wave length | 365nm |
| PCB width | 50-450mm |
| Power supply | 3phase,380V 50/60Hz |
| Weight | 420kg |
UV mercury lamp: 5KW * 2 pieces Arc length 500mm.
The selection of UV mercury lamps is flexible, and each lamp has an independent control system.
The main peak of the UV mercury lamp is 365nm.
The average lifespan of UV mercury lamps is about 800 hours. It is recommended to replace the lamp tube with a new one after the average lifespan has expired (Lamp tubes are vulnerable parts).
The effective irradiation width is 420mm.
Fan delay, when the UV lamp is turned off, the fan will continue to cool the UV lamp and improve its service life.
Instant drying, high production efficiency.
After drying, the printing surface can achieve high hardness, high gloss, friction resistance, solvent resistance effect.
Transmission by roller shaft, frequency conversion stepless speed regulation.
Selection of high quality and efficient lamp, lamp room forced heat exhaust, prolong the life of the lamp, protect dry goods will not be deformed by heat.
