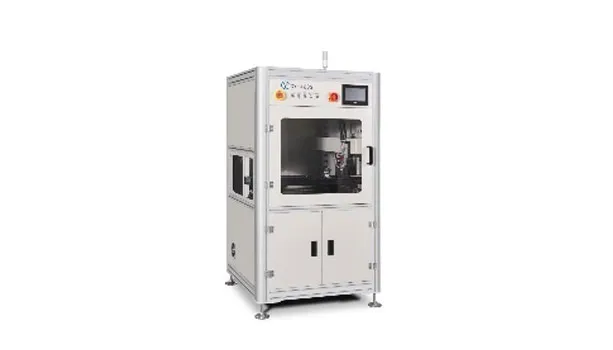

The CY-460S is designed for rapid full-coverage spraying of conformal coating on circuit boards.
Device parameters | |
Frame size L*W*H | L1130mm*W960mm*H1650mm |
Weight | 480kg |
Operation method | PLC+touch screen |
Programmatically | Manual teaching |
Running program storage number | Above 1000 pcs |
PCB Transmission height | 900±20mm |
Transportation speed | 1000mm/min |
Transmission direction | Left → right |
transfer method | Stainless steel chain + stepper motor |
PCB Width range | 50-450mm |
Width adjustment method | Manual width adjustment |
Y Shaft drive mode | Servo motor + synchronous belt |
Y Maximum operating speed of shaft | 1000mm/s |
Y Axis positioning accuracy | 0.04 mm |
Valve up and down | Slide cylinder |
Number of valves | 1 pcs |
Valve type | Cone valve |
PCB board size | MAX W50mm*L460mm |
PCB Board component height | MAX 50mm |
Coating width | 1-30mm |
Coating thickness | 0.01mm-5mm（Determined according to glue performance） |
Tank volume | 10L Glue supply pressure tank |
Cleaning bucket | 500mL |
Cleaning function | The equipment comes with cleaning function |
Lighting part | The equipment comes with white light and purple light |
power supply | AC220V |
Gas source | ≥0.4MP |
Total power | 1 KW |
1. Adopting PLC+ servo motor +transmission belt drive, with an accuracy of 0.04mm;
2. Standard configuration includes 1valve, easy and reliable spraying
3. External 500CC and 10L (optional) glue supply barrels provide constant and flexible glue supply
4. Comes with cleaning function, easy and fast maintenance
5. The device is equipped with automatic UV detection function
6. New online accessible rail transportation+ automatic isolation glue function
7. Low pressure atomization, neat boundaries, reducing pollution;
8. Support visual programming and manual trial teaching function
JC-200M, cone type atomizing valve
JC-200N, Precision spray valve
