Name: RV-2-3D SMT Assembly Line
Brand: Shenzhen Chengyuan Industrial Automation Equipment Co., Ltd.
Availability: InStock

Contact us

Specifications of RV-2-3D SMT Assembly Line

Model name		RV-2-3D
PWB size		50mm×50mm – 410mm×300mm 50mm×50mm – 630mm×300mm (longer sized PWB)*
FOV(optimum)	P-3D AOI	0.41s / frame
Inspection resolution		15μm (Standard resloution), 10μm(High resolution)*
Inspection resolution		15μm ( Standard resloution ), 10μm ( High resolution )*
Item of inspection		Missing component,Position displacement, Polarity, Front/rear reversal, Unsoldered,Bridge, Quantity of solder, Lack of insertion component, Character recognition*

Features of RV-2-3D

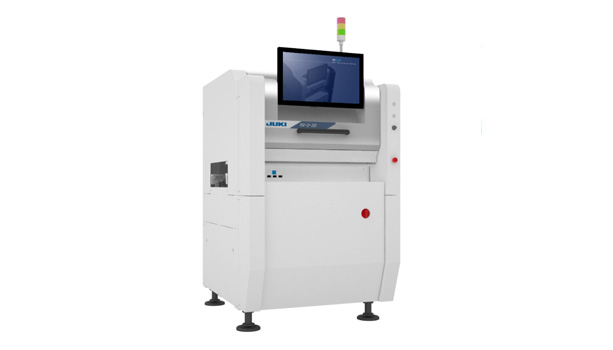

JUKI 3D solder paste inspection machine, 3D board visual inspection machine(AOI/SPI) RV-2-3D

1. Realizing of speeding up by latest 3D unit. Achieving of 0.41 sec / FOV and 34% improvement comparing with previous model.

2. Height resolution 0.1 μm, Repeatability 10 μm *Realizing of significant precision improvement.With new technology development, acquire clear and high-precision 3D image.

3. In addition to the previous 2D template and process mode, added newly 3D template mode.

Furthermore, developping of new algorithm for fillet inspection.

EMS Production Line
