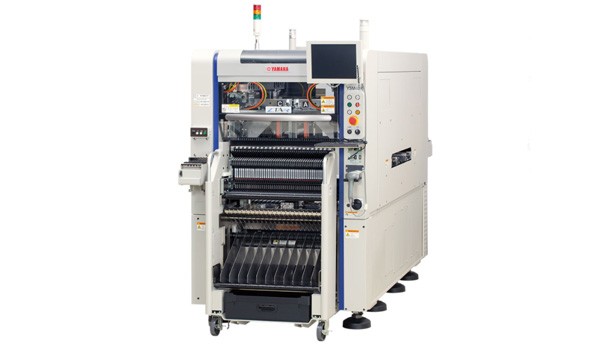

Model | YSM40R 4-Beam, 4-Head Spec. | |
Applicable PCB |
| |
Mounting capability | 200,000CPH (When using RS head) | |
Applicable components | Ultra-High-Speed (RS) Head | 0201mm* to □6.5mm (Height 2.0mm or less) *option |
Multi (MU) Head | 03015mm to 45×60mm (Height 15mm or less) | |
Mounting accuracy | +/-35μm (25μm) | |
Number of component types | Max. 80 feeders with RS heads | |
Power supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% | |
Air supply source | 0.45MPa or more, in clean, dry state | |
External dimension | L1,000×W2,100×H1,550mm (excluding projections) | |
Weight | Approx. 2,100 kg | |
Highest productivity in the world!
World’s fastest! 200,000 CPH
The speed is achieved by the leading-edge technology including innovative high-speed rotary heads and servo motors incorporating new, high-speed algorithms, etc.
Multi-camera system

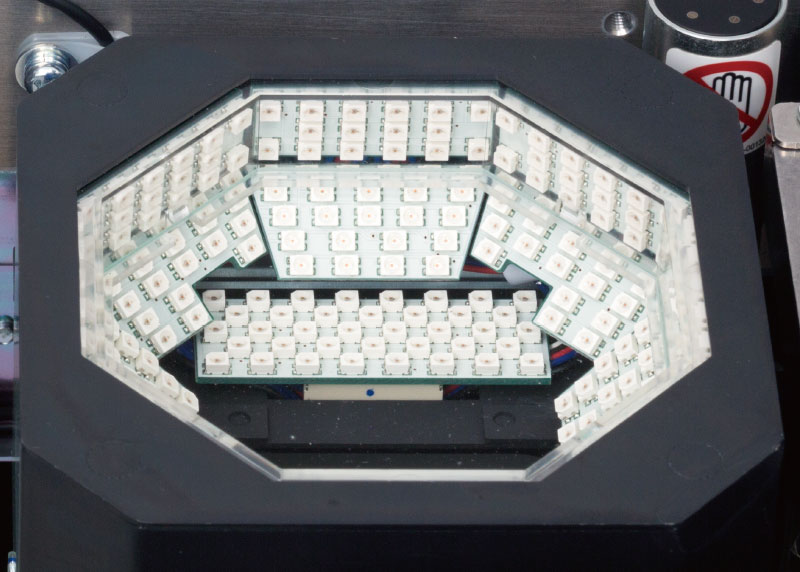

Innovative multi-camera system has faster recognition speed along with high accuracy. This system can also include a coplanarity check function and side-view camera.
Ultra-high-speed rotary head

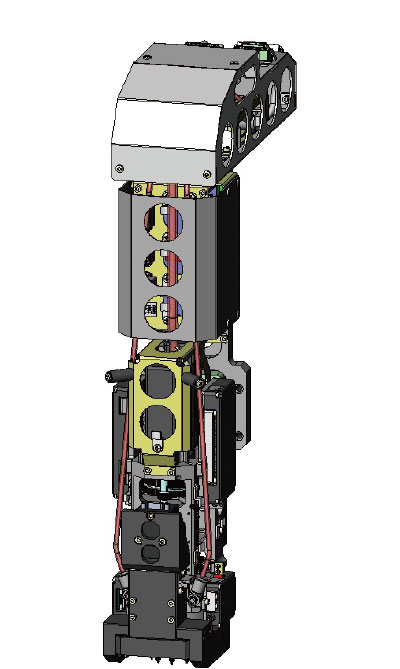

Delivers revolutionary productivity by employing our unique simultaneous component pickup technology, newly developed rotary control technology, and heads are lighter than previous high-speed heads.
Ultra-high-speed ZS feeder
ZS feeder

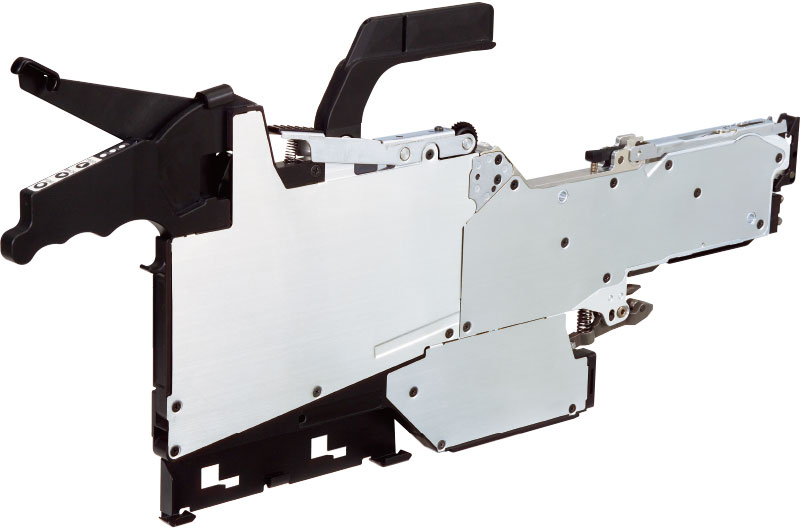

A light-weight compact motorized feeder incorporates a new type control algorithm to ensure super-high-speed operation.
Compact space-saving design

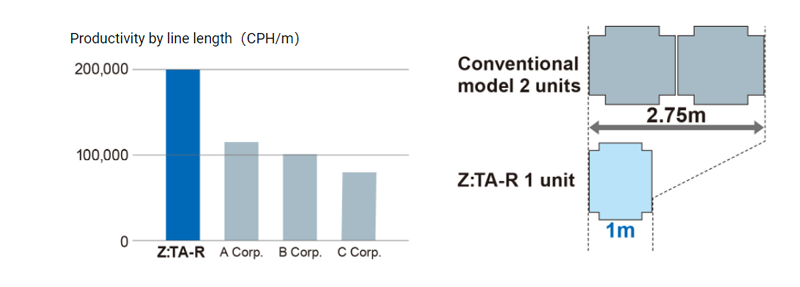

Even though a 4-beam unit, its small footprint and its design feature a width of only 1 meter and depth of 2.1 meters. The Z:TA-R delivers superb productivity per line length and productivity per surface area. It is a powerful tool for making maximum use of limited factory space!
Flexible response for different production configurations!
2 types of head variations
Allows replacement with 2 head types to match the production configuration.
Ultra-high-speed head (RS head)
RS head delivers powerful productivity spanning a range from tiny 0201mm to 6.5mm square on up to heights of 2mm.
Multi-head (MU head)

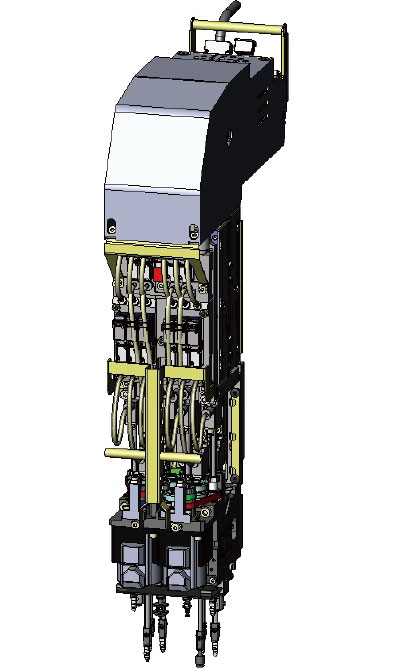

MU head offers the advantages of both component adaptability and high-speed to handle components from 03015mm chips through 45x60mm and heights up to 15mm.
Flexible nozzle station

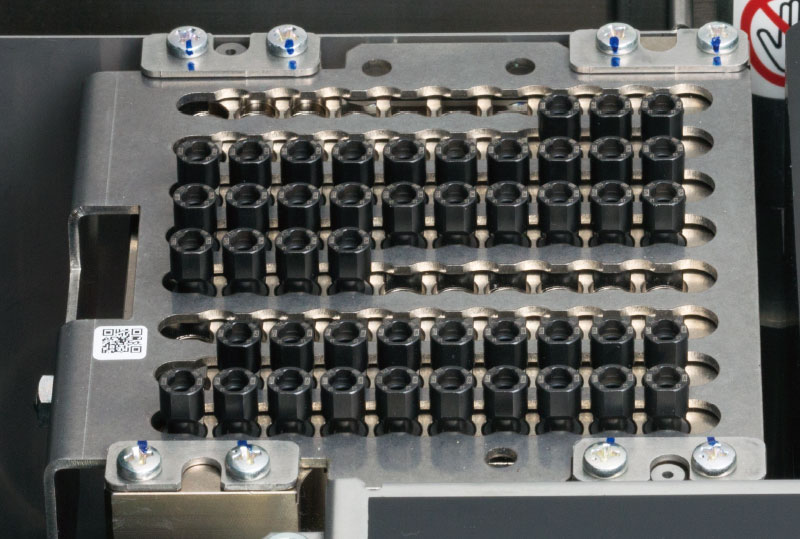

Nozzle station (ANC) is changeable to match the head. Also handles nozzle free layouts for high-speed head compatibility.
Head variations & matching components

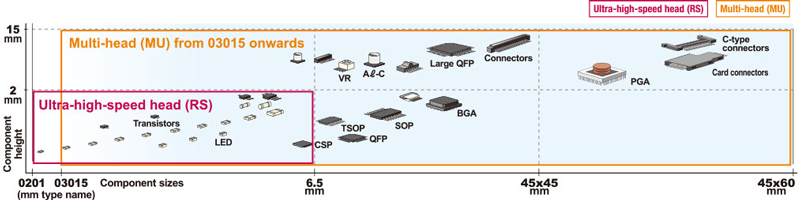

Ultra-high-speed head handles components from tiny 0201mm chips and onwards
Dual lane system handles large-size PCBs

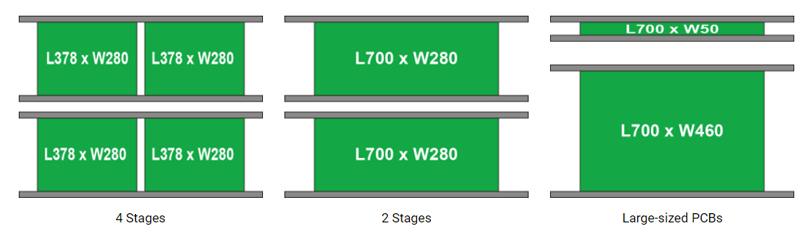

The YSM40R employs the dual lane system that gives superb versatility in feeding 2 parallel lanes of PCB in sizes ranging from small to midsized PCB on up to large-sized PCBs of 700mm in length.
