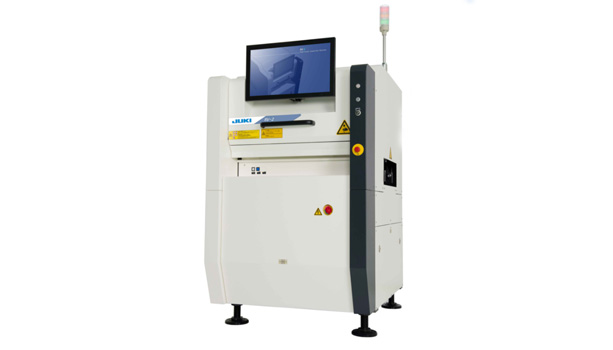

Name: RV-2 SMT Assembly Line
Brand: Shenzhen Chengyuan Industrial Automation Equipment Co., Ltd.
Availability: InStock

Specifications of RV-2 SMT Assembly Line

Model name			RV-2
PWB size			50mm×50mm – 410mm×360mm 630mm×360mm(longer sized PWB)*
Components			0402* / 0603(metric), Cylindrical chip, tantalum capacitor, transistor, SOP / QFP,etc.
FOV(optimum)	2D		0.2s / frame
	i-3D SPI	2D+3D inspection	0.50s / frame(4frame)
	e-3D AOI	2D+3D inspection	0.55s / frame(4frame)
Inspection resolution			15μm (Standard resloution),10μm (High resolution)*
Item of inspection			Missing component,Position displacement, Polarity, Front/rear reversal, Unsoldered,Bridge, Quantity of solder, Lack of insertion component, Character recognition*
