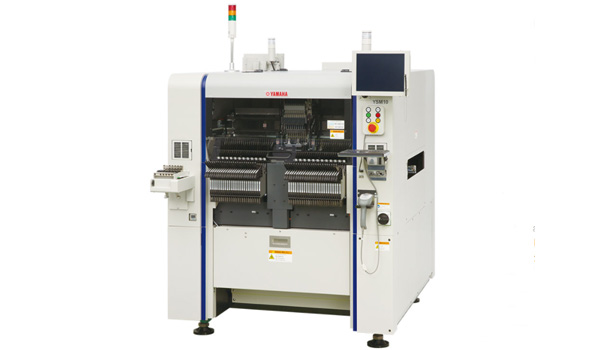

YSM10 Yamaha Pick And Place Machine

Features of YSM10

1. 1-Head Solution

Handles a wide range of components from 03015mm (0.3 × 0.15mm) ultra-micro-chips to large parts 55 × 100mm and 15mm in height and needs no head replacement since it uses high-speed general-purpose heads the same as high-end models.

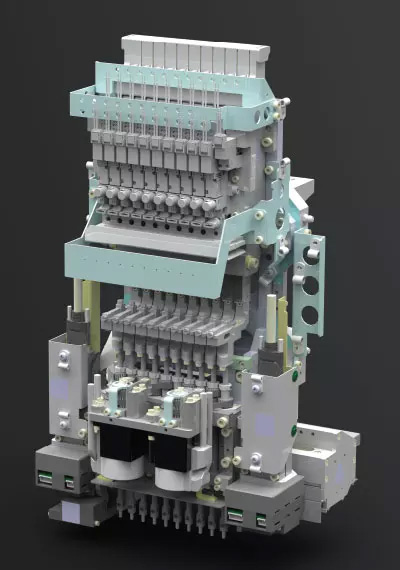

HM (High-speed Multi) head

Standard type with 10 nozzle specifications for a compact body, light-weight, high-speed and versatility.

HM 5 head

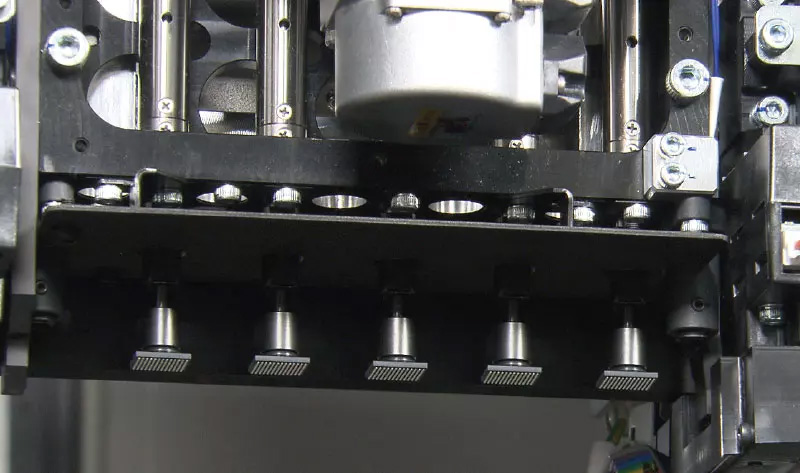

Economy type having 5 nozzles with HM head functions unchanged, it is selectable according to productivity and budget needs.

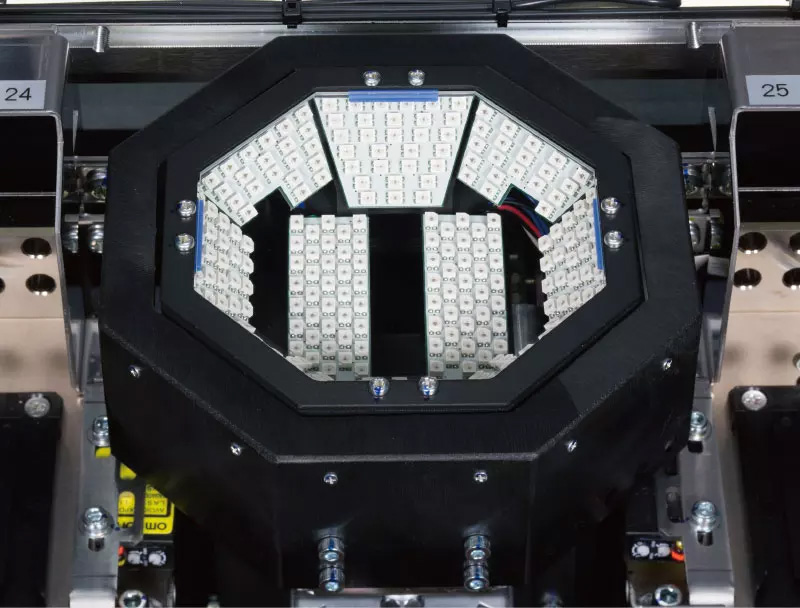

New scan camera

Improves scan camera performance that expands the size of high-speed mounting parts to 12mm.Supports ball recognition such for BGA and CSP, etc.

2. The world’s fastest mounting speed in its class!

By adopting a new-generation servo system from upper-ranked models and utilizing a lightweight and compact universal type head we have speeded up mounting more than 25% compared to conventional models to achieve the world’s fastest mounting speed in its class of 46,000 CPH (chips per hour).

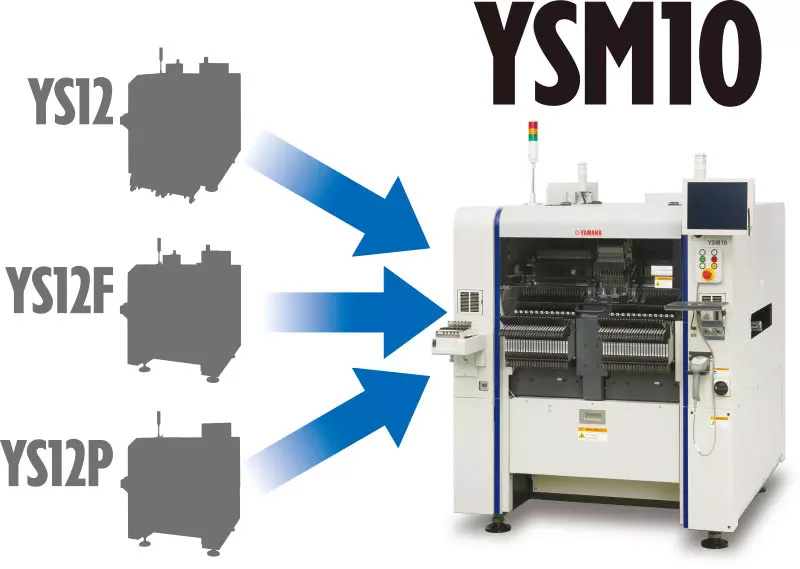

Single Platform

Here, 3 models or namely the YS12 with flexibility and mobility, YS12P with some simpler specifications, and YS12F with superb component handling compatibility are integrated into one type of platform. This is a super-entry model combining high parts compatibility and versatility along with the usual small size body, high speed, and space saving specs.

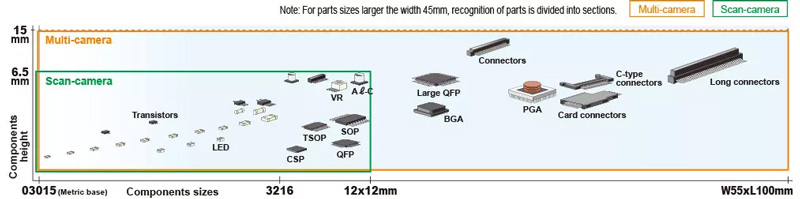

3. Compatible components

4. Multi-camera

High-speed and high-accuracy parts recognition to sizes exceeding 12mm or heights exceeding 6.5mm.

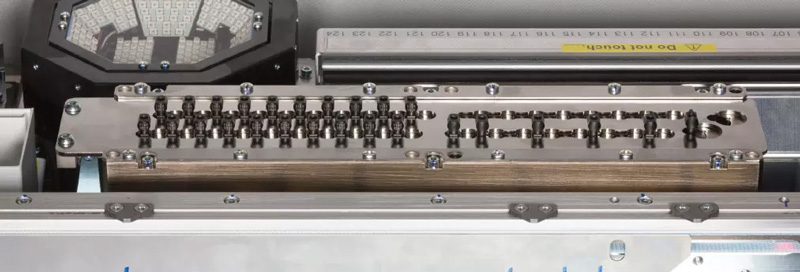

5. Nozzle station

Automatic replacement of spare nozzles and special order nozzles available.
