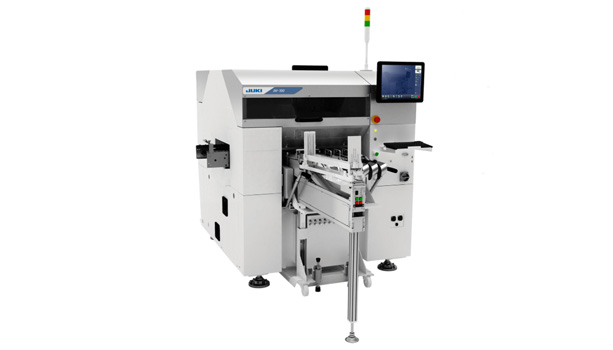

Name: JUKI High Speed DIP Insertion Machine JM100
Brand: Shenzhen Chengyuan Industrial Automation Equipment Co., Ltd.
Availability: InStock

Contact us

Video of JUKI High Speed DIP Insertion Machine JM100

Specifications of JUKI High Speed DIP Insertion Machine JM100

Multi Task Platform JM-100
		Standard specification (Lsize PWB)	Clinch specification (Lsize PWB)
			With using Clinch unit	Without using Clinch unit
Board Size	1 time clamping	50㎜×50㎜~410㎜×360㎜	80㎜×100㎜~410㎜×360㎜	80㎜×50㎜~410㎜×360㎜
	2 times clamping	50㎜×50㎜~800㎜×360㎜	80㎜×100㎜~800㎜×360㎜	80㎜×100㎜~800㎜×360㎜
PCB Weight		max.4kg
Component Height		max.30㎜
Component Size	Laser recognition	0603～50mm
	Vision recognition	3mm～50mm
Insertion Speed （Insertion components）	Vacuum	0.6 sec/part13*4
	grip	0.8 sec/part23*4
Placement Accuracy (SMT）	Laser recognition	±0.05mm（3σ）
	Vision recognition	±0.04mm

* 1 Specification conditions

(Applicable part: Aluminum electrolytic capacitor (φ 8 mm), Feeder: two MRF-S, Placement conditions: Simultaneous pick, sequential insertions using 2 nozzles)

* 2 Specification conditions

(Applicable part: Connector (4 pin), Insertion conditions: 2 sequential picks and insertions using 2 nozzles)

* 3 Board transfer and mark recognition time not included.

* 4 When the part height is 16 mm.

Features of JUKI High Speed DIP Insertion Machine JM100

Best in class speed.
Component insertion time down to 0.6 seconds for vacuum nozzle and 0.8 seconds for gripper nozzle.
New “Takumi head” with multiple recognition heights
Component Feeding
Line control using JaNets software

EMS Production Line
