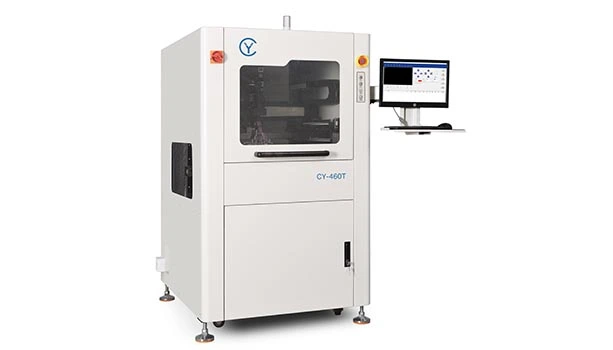

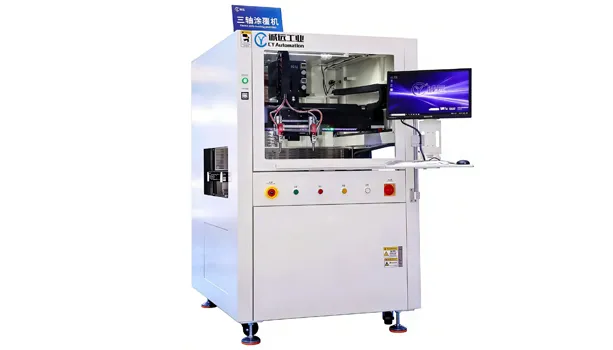

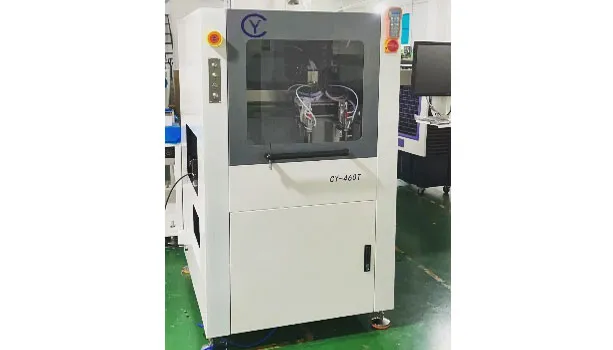

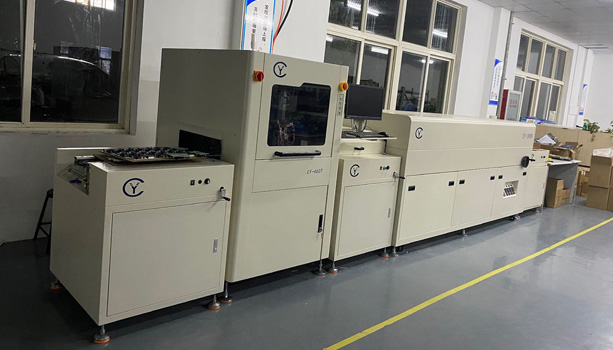

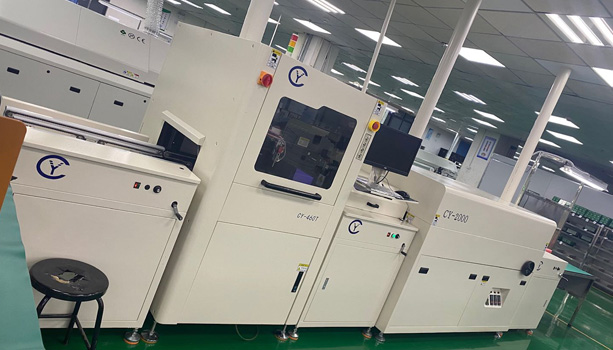

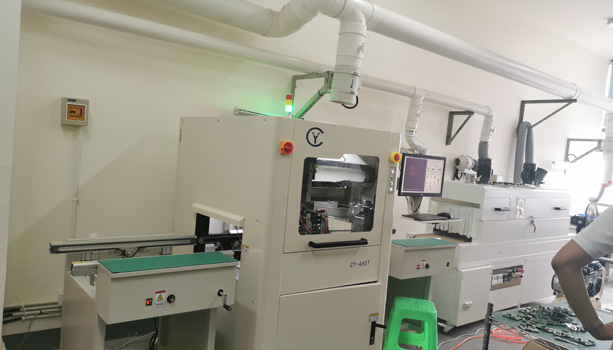

CY-460T Three Axis Selective Conformal Coating Machine

Weight

700kg

Control

Industrial computer + motion control card

Programming

Manual Teaching

Software

CY Coating Machine Intelligent Selective Control Software

PCB transmission height

900±20mm

Transportation speed

Max 300mm/s

Transport Direction

L-R

Transmission mode

Stainless steel chain + stepper motor

PCB wide range

50-450mmStandard  Optional50-580mm

Width adjustment method

Stepper motor electric width adjustment

X. Y-axis drive mode

Servo motor + high-precision screw module

Maximum operating speed of X.Y axis

1000mm/s

X. Y-axis positioning accuracy

0.02 mm

Maximum operating speed of Z-axis

500mm/s

Z-axis drive

Servo motor + high-precision screw module

Z-axis positioning accuracy

0.02 mm

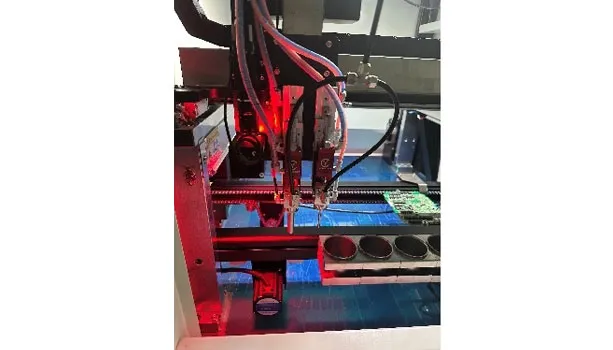

Valve moves

Sliding table cylinder

Number of valves

2

Valve type

Cone valve/needle atomization valve

PCB size

MAX W50mm*L460mm

PCB components height

MAX 100mm

Coating width

1-30mm（Depending on the type of valve）

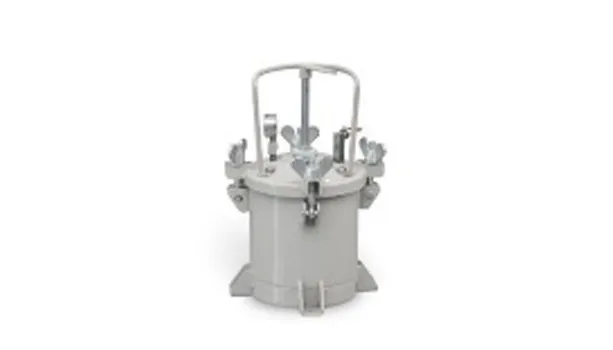

Bucket capacity

10L Glue supply pressure drum

Cleaning bucket

500mL

Cleaning function

The device comes with a built-in cleaning function

Lighting section

White light lamp and purple light lamp

Power supply

AC220V

Air source

≥0.4MP

Total power

2.5KW

Automatic cleaning device

Standard

Barcode scanning function

Optional

CCD visual positioning

Optional

Weight

760kg

Method of control

Industrial computer + motion control card

Programmatically

Manual teaching

Run the software

Chengyuan Coating Machine Intelligent Selective Control Software

PCB Transmission height

900±20mm

Transportation speed

Max 300mm/s

Transmission direction

Left → right

transfer method

Stainless steel chain + stepper motor

PCB Width range

50-450mm

Method of width

Stepping motor automatically adjusts the width

X、Y Shaft drive mode

Servo motor + high-precision screw module

X、Y Maximum operating speed

of shaft

1000mm/s

X.Y Axis positioning accuracy

0.02 mm

Z Maximum operating speed of

shaft

500mm/s

Z Shaft drive

Servo motor + high-precision screw module

Z Axis positioning accuracy

0.02 mm

Valve up and down

Slide cylinder

Number of valves

2 pcs

Valve type

Cone valve/needle atomization valve

PCB Board size

MAX W50mm*L460mm

PCB Board component height

MAX 100mm

Coating width

1-30mm（According to the type of valve）

Tank volume

10L Glue supply pressure tank

Cleaning bucket

500mL

Cleaning function

The equipment comes with cleaning function

Lighting part

The equipment comes with white light and purple light

power supply

AC220V

Gas source

≥0.4MP

Total power

2.5KW

Automatic cleaning device

Standard

Barcode scanning function

Optional

CCD Visual positioning

Optional
