Board size | 50mm×50mm-410mm×300mm | |
Test resolution | 12μm (standard resolution)/5μm (high resolution)*1 | |
Image angle | 48.0×36.0mm、20.0×15.0mm*1 | |
Inspection items | Shorting, shear, polarity, side-reverse, unsoldered solder, bridge, solder quantity, insertion part omission, character recognition*1 | |
FOV | 2D | 0.2sec/1 screen |
3D | 61.8cm²/sec | |

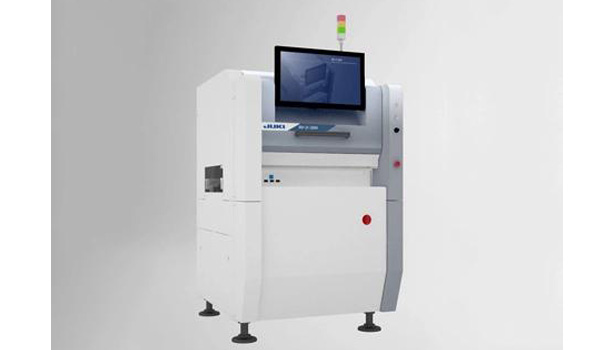

UKI 3D solder paste inspection machine, 3D board visual inspection machine RV-2-3DH(AOI/SPI)
Overwhelming speed: Large improvement in inspection tact with high-pixel (12 million pixels)
Remarkable accuracy: Using high-resolution lenses improves inspection accuracy of ultra-compact components
Ease of use of rating: Process modes that are easy to use and create,from beginners to senior citizens
Visual inspection automation: RV series, which can also be used for measurement
For improving the efficiency of the entire plant: Achieving the efficiency of the entire factory through system linkage
