Specifications | |

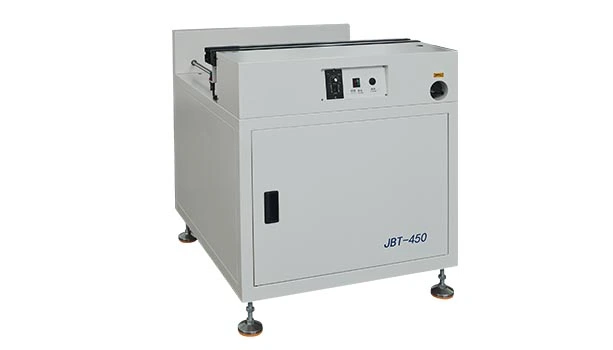

Model | JBT-450 |
External dimensions | L800*W800*H900mm |
PCB size | 50*450mm |
Transmission height | 900±20mm |
PCB board clearance height | 上/up 100mm.下/down 100mm |
Transport Direction | L-R(Standard) |
Track length | 800MM，One board can be parked on the guide rail, and the speed of the conveyor chain can be adjusted |
Transmission motor | Step motor |
Conveyor speed | 0-3 meters per minute |
Control mode | Control card control |
Transport type | 35B stainless steel chain with long pin |
Standard signal | Using standard SMEMA interface, it can be directly connected to other devices for use. |
Power supplhy | AC220V/50-60HZ(Independent electrical box control). |
Full sheet metal structural framework, surface electrostatic powder coating
The heavier design improves stability
Optional pass/detect working mode
Smooth and parallel width adjustment (stainless steel screw)
Variable speed control
Compatible SMEMA interface
