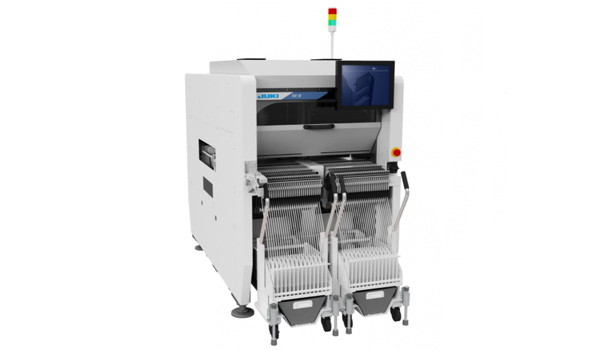

RX-8 JUKI Pick And Place Machine JUKI

Features of RX-8

1.High-speed placements of up to 100,000 CPH.*¹Best-in-class placement rate per square meter(sq ft).

• New P20 placement head achievesspeeds of up to100,000CPH.

• At only 998mm wide, the RX-8 provides exceptional productivity in a compact footprint.

• Best in class placement per square meter(square foot)

2. Integrates seamlessly with the production enviroment

Efficient production in made possible via upstream data sharing to square bad mark propagation, component supply management while showing real-time status of the production line.

Communicates and shares information with other equipment

• Bad mark information of the circuit detected by the inspection machine or a machine upstream of the line can be

• propagated to the RX-8 in order to reduce the bad mark recognition timed and imporve productivity.

Component Management with Auto replenishment

• Top production efficiency is achieved by continuous monitoring of component consumptionand communication

• with the Automated Component Storage and Transport System. When the placement system detects a low-level warning,

• it automatically communicates that information to the storage system, which immediately pulls an additional reel of that

• component, loads it on an AIV to transport the reel to the line to arrive before the existing reel has run out.

• This eliminates downtime during production due to component run out.

3. Trace Monitor tracks quality throughout the production process

• Trace Monitor provides real time status of the placement head during production.

• It tracks mis-picks, recognition errors and records which feeders and nozzles those

• errors came from. A dashboard displays all the key performance indicators makinig

• it easy to view the production efficiency and what is needed to improve the process.

4. Low impact placement for flexible circuits

• Low Impact feature allows separately adjusting the down and up speed of nozzle during placement.

• This minimizes the load on the part and on the board during placement.

• This is optimal for placing very small parts that require a lot of accuracy.

5. The P20 high-precision planet head is ideal for high speed pocking and placing from a single reel.

• The P20 is designed for placement of ultra-small chips and small IC's.

• It is ideal for high-density and high-accuracy placement of LED edge lights.

6. State-of-the-art centering and inspection vision system

• The vision system detects presence and absence, inverted chips, and tombstoning.

• It also automatically corrects the pick position of every part, increasing the pick rate.

• This system makes it ideal for placing very small parts.

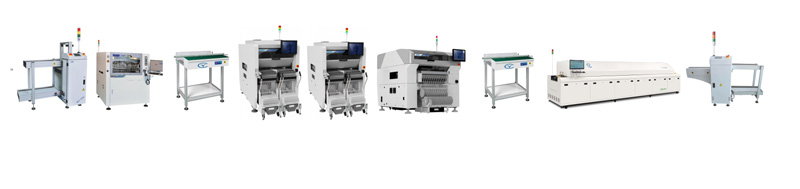

JUKI RX-8 SMT Assembly Line

SMT PCB production,Full Automatic Assembly line

Speed:250000CPH

Product description: JUKI RX-8 SMT Assembly Line, Usage: PCB production, Full Automatic Assembly line, Speed:250000CPH

1. Loader:

1.)Special Aluminum alloy guide rails and rubber belt

2)Magazine lifting with screw rod by 90W electric-brake motor which made in Taiwan

3)Pneumatic PCB clamping structure

4)Attach one set 0.7m length pcb conveyor

5)Magazine size(L*W*H): (L)535*(W)460*(H)565mm

6)PCB max size(L*W):(L)500*(W)390mm

7)Direction:R-L/L-R

8)Adjustable Lifting distance:10,20,30,and 40mm

9)Programmable Mitsubishi PLC and controller

10)PCB Automatic loading to conveyor

11)Operation Control system: Touch Panel controlled interface

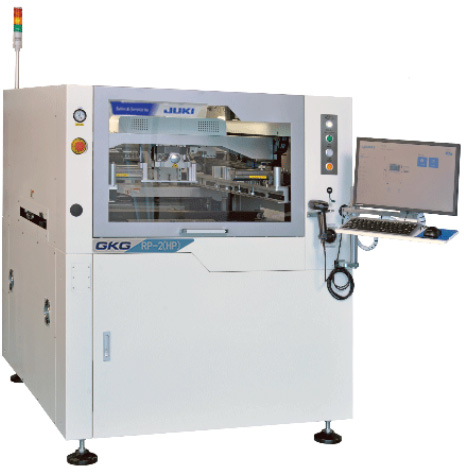

2. Stencil Printer GKG G5:

G5 is high accuracy and high stability of the fully automatic printing machine vision,GKG followed in SMT industry is the development trend of production of a new generation of fully automatic printing machine with the international leading technology synchronous vision, visual processing of high resolution, high precision of the transmission system, suspension adaptive scraper.

GKG Series High Precision Automatic Solder Paste Printer designed for high precision
steel mesh printing or stencil printing in SMT industry.
Printing PCB size：50mm x 50mm ~400x340mm;
PCB thickness: 0.4mm ~ 6mm
FPC thickness: ≦0.6mm (Excluding jig)
Applicable pitches of Components

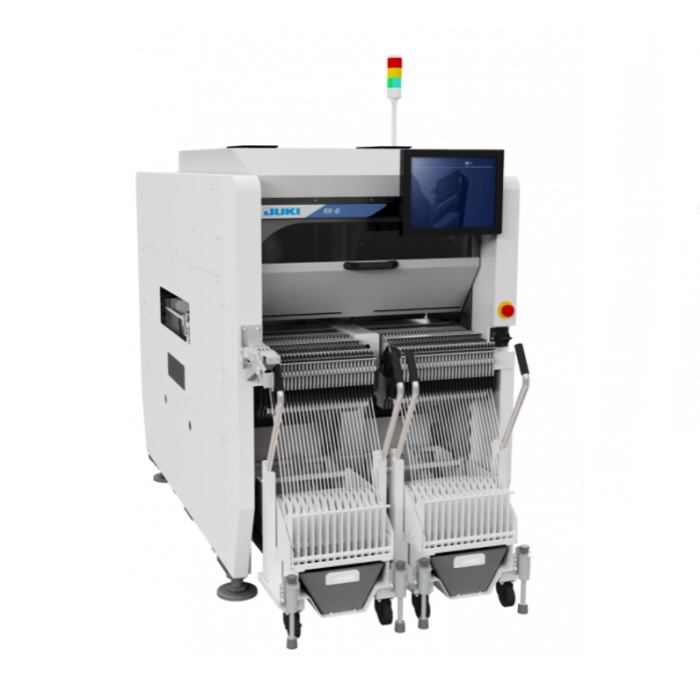

3. JUKI High Speed Pick and Place Machine RX-8

High-speed placements of up to 100,000 CPH.

Best-in-class placement rate per square meter (sq ft)

New P20 placement head achieves speeds of up to 100,00CPH. At only 998mm wide, the RX-8 provides exceptional productivity in a compact footprint. Best in class placement per square meter(square foot)

optimum conditions Market survey data

Integrates seamlessly with the production environment

Efficient production is made possible via upstream data sharing to support bad mark propagation, component supply management while showing real-time status of the production line.

Communicates and shares information with other equipment

Bad mark information of the circuit detected by the inspection machine or a machine upstream of the line can be propagated to the JUKI RX-8 in order to reduce the bad mark recognition times and improve productivity.

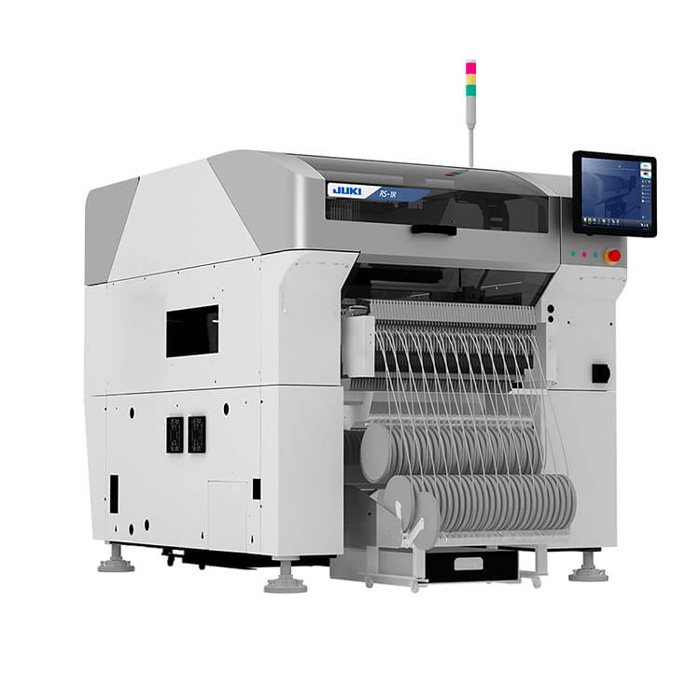

4. JUKI RS-1R Pick and Place Machine

speed, up to 47,000 cph
Newly developed “Takumi Head” with changing recognition sensor height
Optimum line balance and highest throughput
Wide component range from 0201 (metric) to large connectors and ICs
Optimal for LED placement
Electric Feeder Series
Supports stable supply of super small components.
High-Speed Compact Modular Mounter RS-1R

5. CY Lead Free Reflow Oven CY-F820

◆ Windows7 operating system, Chinese and English interface switch, easy to operate.

◆ Fault diagnosis function, can display each fault, display and store in automatic alarm list

◆ Control procedures can automatically generate and backup the data report, easy to ISO 9000 management

◆ CY series reflow welding is focused on improving environmental performance of equipment, including a new energy-efficient (duct structure), significantly reducing energy consumption, lower energy consumption and lower carbon emissions

◆ CY series not only meets the highest requirements of lead-free and welding, but also guarantees high quality welding effect, and improves heat conduction technology to avoid overheating of electronic parts on PCB board.

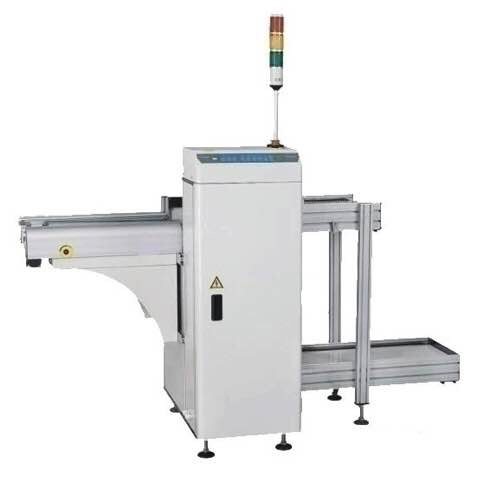

6. Fully Automatic Unloading Machine:

1)Machine Size(L*W*H):L2300*W980*H1200mm

2)Special Aluminum alloy guide rails and rubber belt

3)Magazine lifting with screw rod by 90W electric-brake motor which made in Taiwan

4)Pneumatic PCB clamping structure

5)Attach one set 0.7m length pcb conveyor

6)Magazine size(L*W*H): (L)535*(W)460*(H)565mm

7)PCB max size(L*W):(L)500*(W)390mm

8)Direction:R-L/L-R

9)Adjustable Lifting distance:10,20,30,and 40mm

10)Programmable Mitsubishi PLC and controller

11)PCB Automatic loading to conveyor
